Proxy ports are crucial in internet connectivity. They act as gateways for data traffic between your device and proxy servers.
Understanding proxy ports is essential for efficient proxy configurations, whether enhancing security, bypassing geo-restrictions, or optimizing network performance.
This guide will explain what proxy ports are, why they matter, and how to use them effectively.
What Is a Proxy Port?
A proxy port is a numerical value used to direct network traffic through a specific service on a proxy server.
In summary, it is part of the addressing information that determines how internet data is routed.
To be clear, each port is represented by a number ranging from 0 to 65,535, and it functions in combination with the proxy server’s IP address to establish a connection between the client and the internet.
To understand its role more clearly, imagine the proxy server as a large building.
Now, the IP address is like the street address of the building—it tells your computer where to send its request.
The port number, on the other hand, is like a specific door or office within that building.
So it identifies which particular service or application should handle the request once it reaches the proxy server.
Keep in mind that different ports are commonly associated with specific types of traffic.
For example, port 80 is typically used for HTTP traffic and port 443 for HTTPS.
Meanwhile, proxy servers may use standard or custom ports depending on their configuration and purpose.
By directing data through the correct port, the proxy server ensures that requests are properly processed and routed to their intended destinations.
Key Concepts
- Proxy Server Address: The IP or domain name of the proxy (e.g., 192.168.1.1 or proxy.example.com).
- Proxy Port Number: The specific "door" used for communication (e.g., 8080, 3128).
- Full Proxy Address: Combines both (e.g., proxy.example.com:8080).
For instance, a proxy server address might look like `192.168.1.1:8080`, where `8080` is the proxy port number.
Don't forget that without the correct port, the connection to the proxy server will fail.
Why Proxy Ports Matter
Role in Internet Connectivity
Proxy ports play a crucial role in enabling effective communication between your device (the client) and a proxy server.
When you set up a proxy connection, you are not just specifying the IP address of the proxy server—you also define a port number.
This is the port that determines which specific service on the server should handle the traffic coming from your device.
This distinction is especially important in cases where a single server hosts multiple services.
For example, a proxy server might be configured to handle standard web traffic on one port, encrypted traffic on another, and specialized applications on yet another.
Here the port number acts as a routing mechanism, ensuring that your request reaches the appropriate service without interference or misdirection.
By properly assigning and using proxy ports, network administrators can:
- Manage different types of traffic more efficiently
- Enforce security policies
- Load balance requests
- Prevent unauthorized access to specific services
Security and Privacy
Using the right proxy port enhances security by ensuring encrypted and authenticated connections.
For instance, ports like `3128` (commonly used for Squid proxies) or `1080` (SOCKS proxies) are designed for secure data transmission.
On the same token, misconfigured ports can expose your traffic to vulnerabilities, making proper setup critical for privacy.
- Encrypted Connections: Ports like 1080 (SOCKS) or 3128 (Squid) support secure protocols.
- Authentication: Some proxies require port-specific credentials for access.
- Firewall Protection: Misconfigured ports can expose networks to attacks.
While proxy servers offer many benefits open proxies—proxies that are freely accessible by anyone—pose significant security risks. These proxies are often poorly secured, making them attractive targets for cybercriminals.
Using an open proxy can expose your personal data, credentials, and browsing activity to third parties. In many cases, attackers set up open proxies intentionally to intercept sensitive information or distribute malware.
For these reasons, you should always avoid open proxies and instead use a reputable and trusted proxy service provider. Trusted providers offer encrypted connections, authentication features, and regular maintenance to ensure reliability, privacy, and protection against malicious threats.
Reminder: These ports are standardized to avoid conflicts and ensure compatibility across networks.
How Proxy Ports Work with Proxy Server Addresses
A proxy server address combines an IP/domain and a port number (e.g., proxy.example.com:8080).
Step-by-Step Process:
- Request Initiation: Your device sends data to the proxy server (e.g., 192.168.1.1:3128).
- Port Routing: The proxy server checks the port to determine the service (e.g., Squid caching).
- Traffic Forwarding: The proxy server processes the request and forwards it to the destination (the intended internet service).
Example Scenario:
● Proxy Address: proxy.work.com:8080
● Action: Your browser routes all web traffic through this proxy.
● Result: The company firewall allows access because the traffic uses the approved port.
How to Find and Use a Proxy Port Number
Here's how you can identify and use a proxy port number:
Identifying Your Proxy Port Number
Your proxy service provider typically provides proxy port numbers. You can also find them in:
- Network settings on your device.
- Proxy configuration files or dashboards.
- Documentation from your IT department or VPN provider.
Configuring Your Device with a Proxy Port
Here is how to set up a proxy port on Windows:
1. Go to Settings > Network & Internet > Proxy.
2. Under Manual proxy setup, enter the proxy server address and port.
3. Save the settings and restart your browser.
Proxy settings can be configured in the Advanced Settings menu for browsers like Chrome or Firefox. These settings vary from device to device and platform to platform.
How to Configure a Proxy Port on Android
On Android, you can set the proxy port number for a Wi-Fi network.
1. Go to Wi-Fi settings
2. Open the connected network details.
3. Scroll to the proxy section and choose “Manual”.
4. Enter your proxy details.
To set a system-wide proxy and for mobile data connection, you will need to install a Proxy app from the Play Store and follow the directions of the app to configure your proxy details.
How to Set Up a Proxy Port in Mac
- Open System Preferences > Network
- Open Advanced > Proxies.
- Enter the proxy address and port.
Setting Up a Proxy Port on a Browser
- Chrome: Use chrome://settings/system or an extension like Proxy Helper.
- Firefox: Go to Settings > Network Settings > Manual Proxy

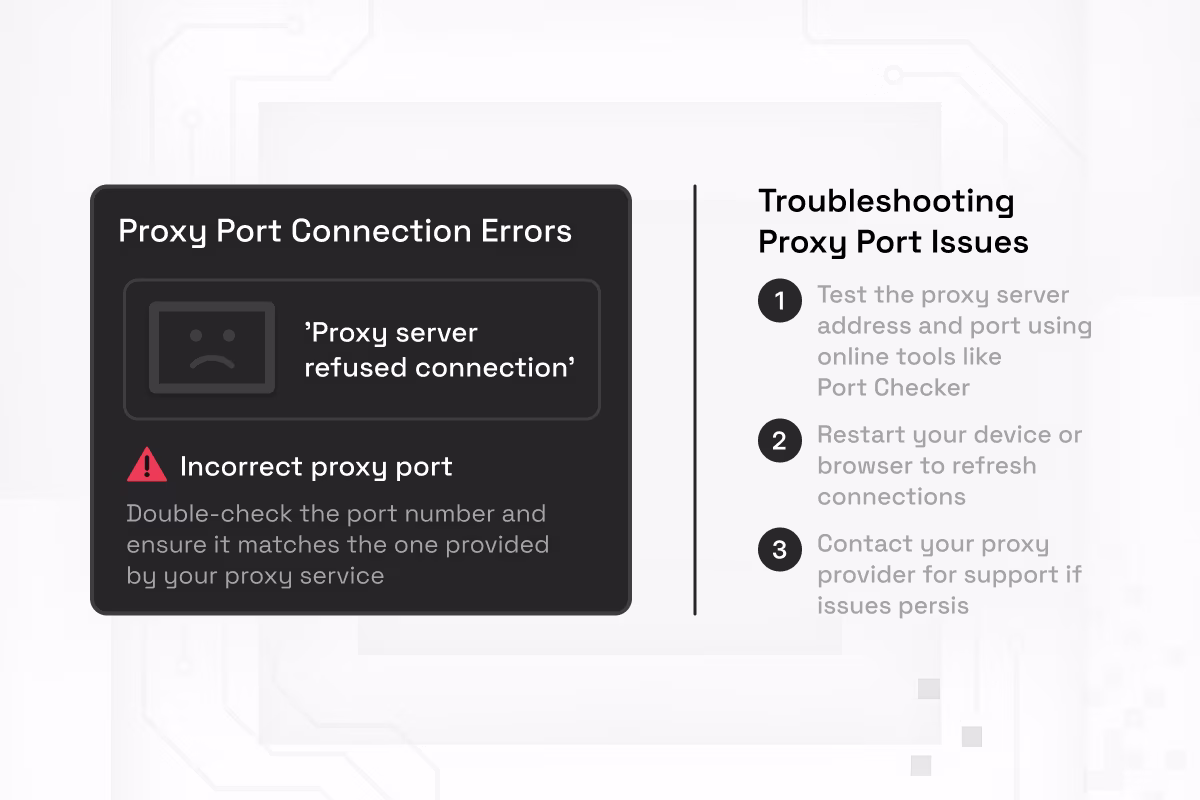

Common Issues and Solutions with Proxy Ports
Proxy Port Connection Errors
"Proxy server refused connection": This often means the port is closed or the proxy server is offline. Verify the port number and server status.
"Incorrect proxy port": Double-check the port number and ensure it matches the one provided by your proxy service.
Troubleshooting Proxy Port Issues
1. Test the proxy server address and port using online tools like Port Checker.
2. Restart your device or browser to refresh connections.
3. Contact your proxy provider for support if issues persist.
Port Proxy vs. Proxy Port: Clarifying the Difference
- Proxy Port: Refers to the specific port number used by a proxy server (e.g., your browser connects via proxy.example.com:8080. In this case, 8080 is the proxy port).
- Port Proxy: A less common term, sometimes used to describe a proxy that forwards traffic for a specific port on a local network. This exposes a locally running service to the internet.
Understanding this distinction helps avoid confusion in configurations.
Real-World Proxy Example: Setting Up a Proxy Port
Imagine you are using a proxy to access a restricted website. Your proxy details are:
- Server Address: `proxy.secure.com`
- Port: `3128`
You would enter these in your browser’s proxy settings.
Once configured, all traffic routes through `proxy.secure.com:3128`, granting you access while maintaining security.
Conclusion
Understanding proxy ports is critical for anyone looking to manage network traffic securely, efficiently, and effectively, whether you are configuring a proxy for privacy, performance, or access control.
Proxy ports serve as the communication bridge between your device and the proxy server, determining how and where your internet traffic is routed.
Much like an address and door number working together, the proxy server’s IP (or domain) and port number must be correctly paired to ensure reliable connectivity.
By grasping how proxy ports function, users can:
Bypass geo-restrictions and censorship by routing through approved ports.
Improve security and privacy using encrypted proxy protocols like SOCKS5 or Squid.
Optimize network performance through load balancing and caching.
Prevent connectivity errors by troubleshooting misconfigurations, firewall issues, or offline ports.
Whether you are setting up a proxy on a personal device, within a corporate network, or using it through a browser, knowing which port to use—and why—can significantly enhance both usability and security.
